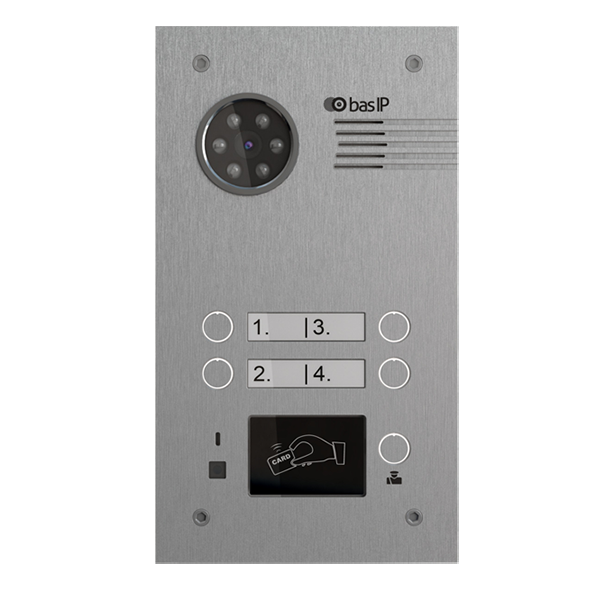

Outdoor Panel

BA-04E SILVER / BA-04M SILVER

Stylish design, modern technology

550 $
Where to buy

BA-04E SILVER / BA-04M SILVER was specially developed for installation on such projects as townhouses and duplexes, multi-apartment houses with 4 apartments on one floor, as well as office centers for several companies. Having installed this panel on your floor or office, you will noticeable save your money. Rather than buying 4 separate panels, you should buy only one.


SPECIFICATIONS

GENERAL OPTIONS
Outdoor panel typeMulti-apartment
DisplayNo
Camera1/3”, camera direction adjustment/control
Viewing angleHorizontally - 78°; vertically - 56°
Resolution800 TVL
Output videoD1 (704×576), H.264 Main Profile, BaseLine Profile
Night backlight6 LEDs
Light sensitivity0,01 Lux
Protection classIP65
Operating temperature-40 – +65 °С
Power consumption6,5 W, standby – 3,6 W
Power supply+12 V
CaseMetal
ColorsSilver-grey
Dimensions for installation250×150×60 mm
Dimensions of panel270×155×50 mm
InstallationFlush mount, wall mount with BR-BA
KeyboardMechanical buttons with backlight
FUNCTIONALITY
InterfaceWEB-interface
Lock openingWith the monitor, by card, with the concierge monitor
Access control BA-04E SILVERCard reader EM-Marin
Access control BA-04M SILVERCard reader Mifare
Integration with ACSOutput WIEGAND-26
Buttons for quick dialingConcierge call button, direct subscribers buttons
Number of ringtones4 polyphonic ringtones
AuthenticationWEB-interface
Talking modeDouble-sided
AdditionallySIP P2P
