Outdoor Panel

AV-01TE GREY / AV-01TM GREY

Stylish design, modern technology

375 $
Where to buy

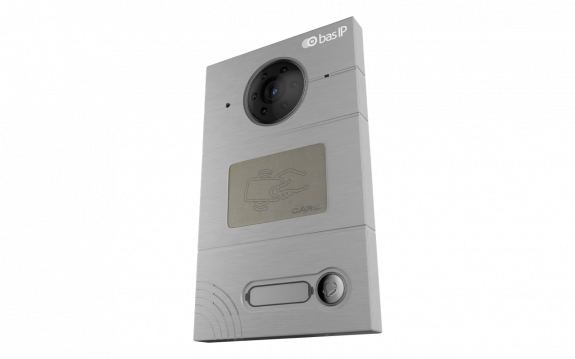

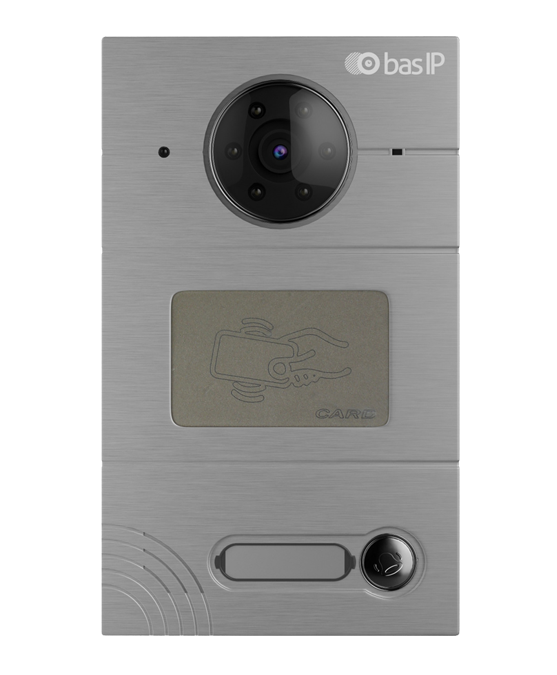

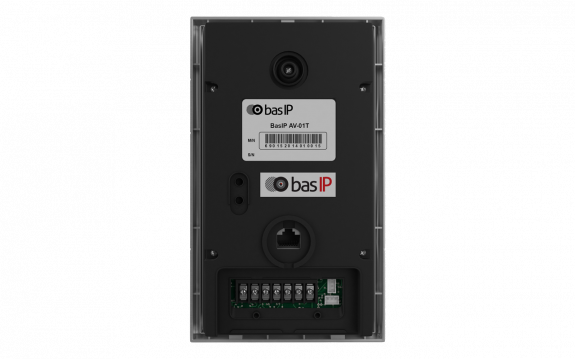

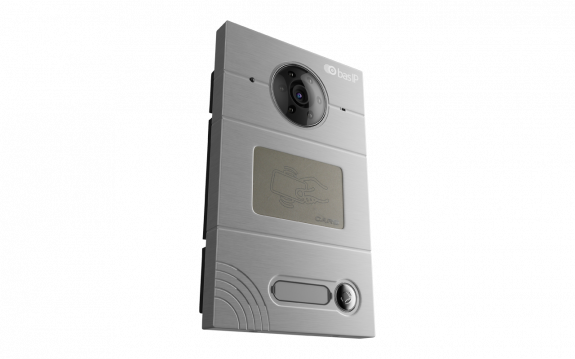

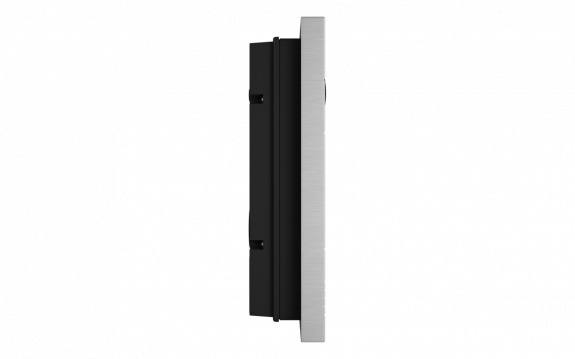

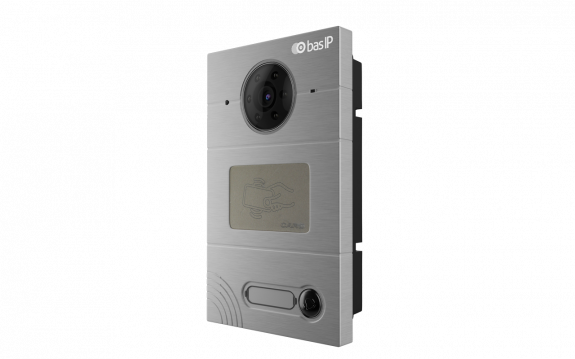

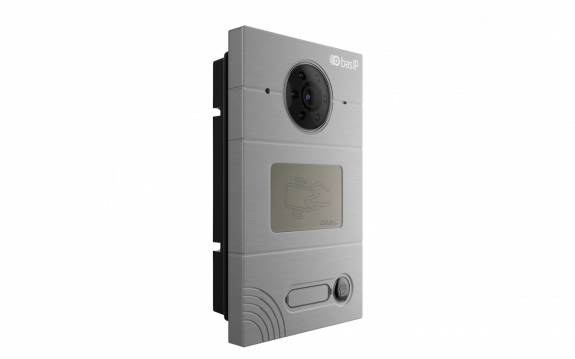

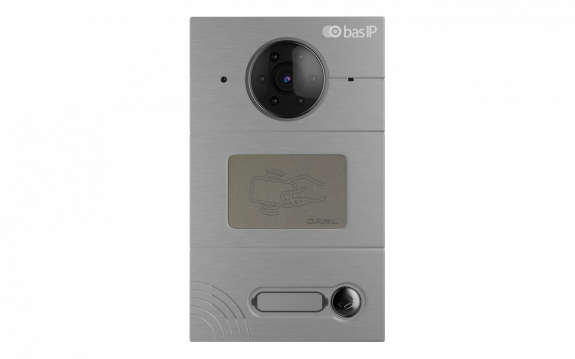

AV-01TE GREY / AV-01TM GREY – is an individual outdoor panel which has excellent technical characteristics and a beautiful design. One of the features of this panel is the support of contactless cards. In addition, AV-01T has a built-in camera, which provides video output in D1 resolution. The protection class IP65 provides a durable work of AV-01T.


SPECIFICATIONS

GENERAL OPTIONS
Panel typeIndividual
DisplayNo
Camera1/3”, adjustment of the camera direction
Angle78° horizontal × 56° vertical
Resolution800 TVL
Output videoD1 (704×576), H.264 Main Profile, BaseLine Profile
Night backlight6 LEDs
Light sensitivity0,01 LuX
Protection classIP65
Operating temperature-40 – +65 °С
Power consumption5.5 W, standby - 2.5 W
Power supply+12 V
CaseMetal
ColorsTitanium gray
Dimensions for installation180×104×60 mm
Dimensions of panel192×116×45 mm
InstallationFlush mount, wall mount with BR-AV
FUNCTIONALITY
InterfaceWeb-interface
Lock openingWith the monitor
Access control AV-01TE GREYCard reader EM-Marin
Access control AV-01TM GREYCard reader Mifare
Integration with ACSOutput WIEGAND-26
Buttons for quick dialing1 call button
Number of ringtones4 polyphonic ringtones
AuthenticationWeb-interface
Talking modeDouble-sided
AdditionallySIP P2P, Place for the signature near the call button
