Outdoor Panel

AV-01 GREY

Stylish design, modern technology

355 $
Where to buy

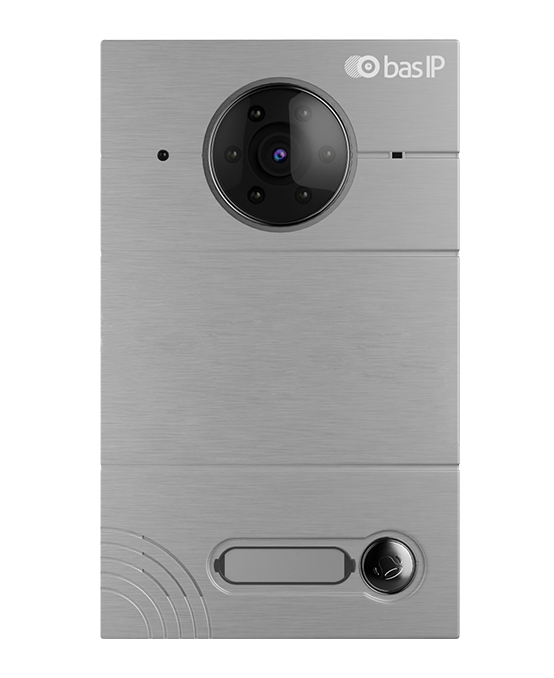

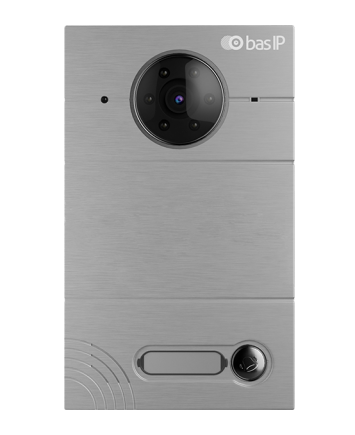

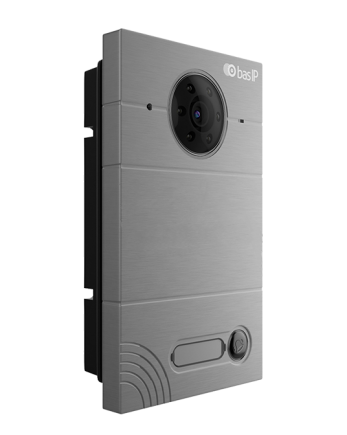

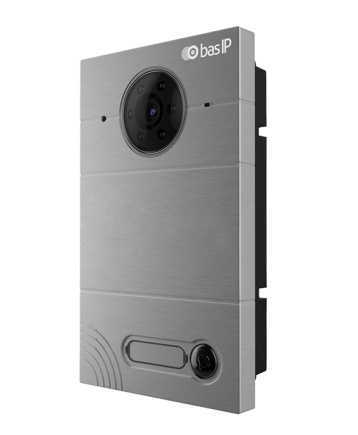

This individual outdoor panel AV-01 meets all modern requirements: it has a beautiful design, dust- and waterproof metal body, camera that transmits high quality images and the ability of both wall and flush mounting.


SPECIFICATIONS

GENERAL OPTIONS
Panel typeIndividual
DisplayNo
Camera1/3”, adjustment of the camera direction
Angle78° horizontal × 56° vertical
Resolution800 TVL
Output videoD1 (704×576), H.264 Main Profile, BaseLine Profile
Night backlight6 LEDs
Light sensitivity0,01 LuX
Protection classIP65
Operating temperature-40 – +65 °С
Power consumption5.5 W, standby - 2.5 W
Power supply+12 V
CaseMetal
ColorsGrey
Dimensions for installation180×104×60 mm
Dimensions of panel192×116×45 mm
InstallationFlush mount, wall mount with BR-AV
FUNCTIONALITY
InterfaceWeb-interface
Lock openingWith the monitor
Access controlNo
Integration with ACSNo
Buttons for quick dialing1 call button
Number of ringtones4 polyphonic ringtones
AuthenticationWeb-interface
Talking modeDouble-sided
AdditionallySIP P2P, Place for the signature near the call button
All options

SUPPORT

User manual
Downloads
