Outdoor Panel

AA-07E SILVER / AA-07M SILVER

Stylish design, modern technology

737 $
Where to buy

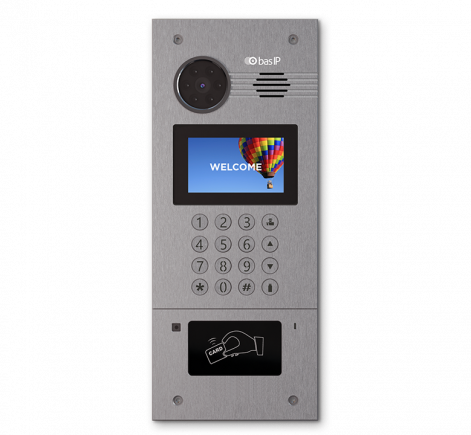

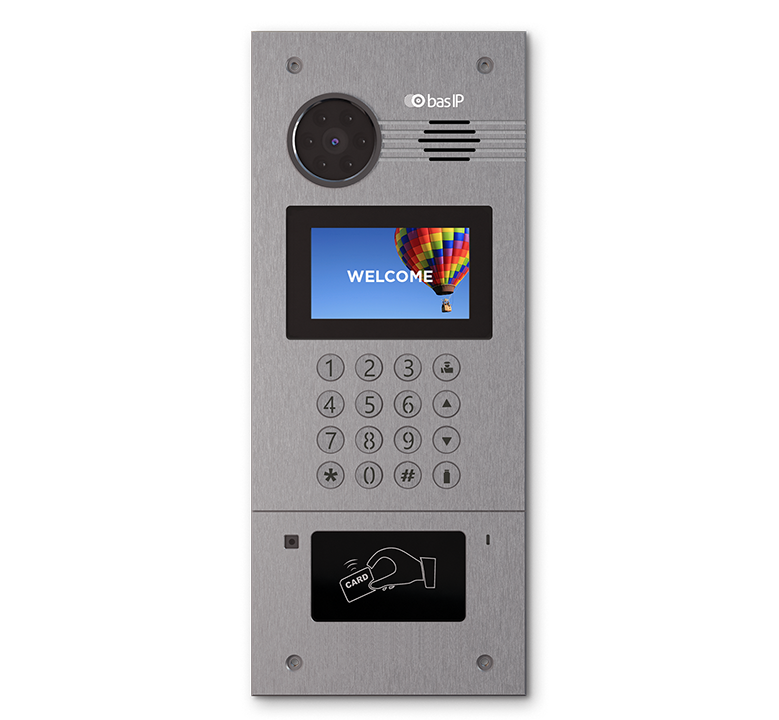

The multi apartment metal outdoor panel AA-07E SILVER / AA-07M SILVER – is the perfect solution for office buildings, apartment complexes and cottage settlements.

In this model there are vandal-proof metal mechanical buttons. Because of the button’s lighting, it will be easy to dial the number of the apartment at night.


SPECIFICATIONS

GENERAL OPTIONS
Panel typeMulti apartment
Display4“ TFT, color, with backlight
Camera resolution1/3”, camera direction adjustment/control
Angle80° horizontal × 64° vertical
Resolution1MP
Output videoHD (1280×720), H.264 Main Profile, BaseLine Profile
Night backlight6 LEDs
Light sensitivity0.01 Lux
Protection classIP65
Operating temperature-40 – +65 °С
Power consumption6,5 W, in standby – 3,6 W
Power supply+12 V
CaseMetal
ColorsSilver-grey
Dimensions for installation355×140×53 mm
Dimensions of panel375×155×47 mm
InstallationFlush mount, wall mount with BR-AA
KeyboardMechanical buttons with backlight
FUNCTIONALITY
InterfaceEnglish, WEB- interface
Lock openingWith the monitor, by code, by card
Access control AA-07E SILVERCard reader EM-Marin
Access control AA-07M SILVERCard reader Mifare
Integration with ACSOutput WIEGAND-26
Buttons for quick dialingConcierge call button
Number of ringtones4 polyphonic ringtones
AuthenticationSeparate password to the settings, WEB-interface
Talking modeDouble-sided
AdditionallySIP P2P, Built-in relay
